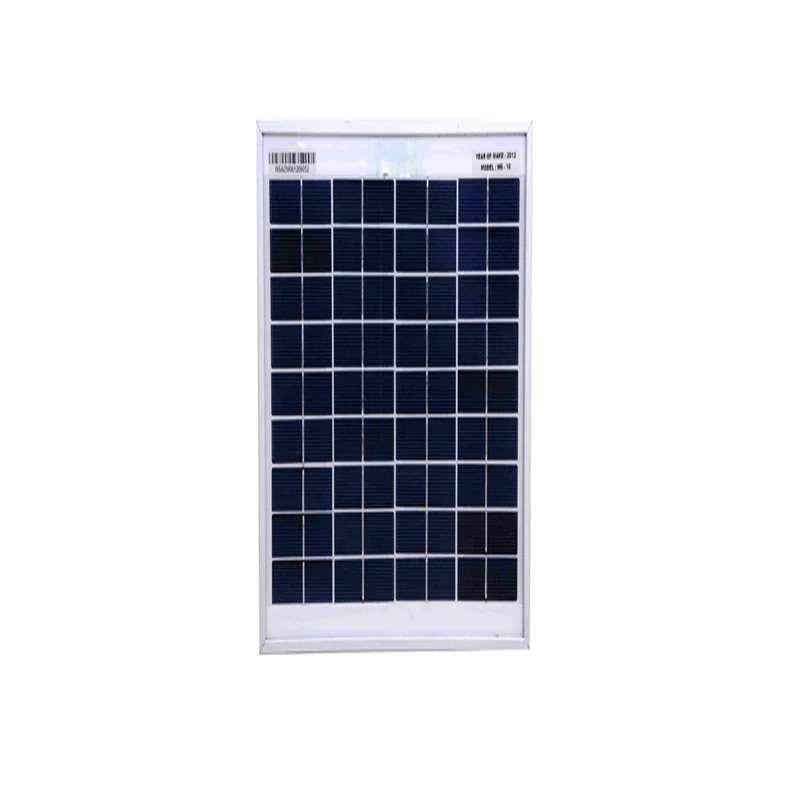

The Multi-crystalline cut cells are embedded between solar grade, low iron, tempered glass and a highly reliable Back sheet using high quality EVA - this ensures high degree of insulation and environmental isolation. The glass is inset deep in the frame, thereby ensuring maximum protection. The back of the module is sealed with a high-quality Back sheet. The junction box has no hollow cavities, is water tight and is resistant to temperature and UV radiation.

Key Features
• Wide range of power with high Watt density.
• By pass diodes to avoid the effect of partial shading.
• Anodized Aluminium alloy Frame and tempered glass or rugged protection in hostile environments.
• Manufactured in a state-of-the-art, automated production facility.

Quality & Safety
• IEC 61215, IEC 61730, IEC 61701 compliant.
• UL 1703 compliant.
• ISO: 9001-2008 Certified Manufacturing Facility.

Warranty (10 Years)
• Product Warranty - 10 Years.
• Power Warranty.
- 90% of minimum rated till end of first 2 years.
- 80% of minimum rated till end of next 10 years.

Electrical Characteristics
• Peak Power, Pmax (W p) - 20W.
• Open circuit voltage, Voe (V) - 21.51V.
• Short Circuit current, lsc (A) - 1.43A.
• Voltage at Maximum power, Vmp (V) - 17.54V
• Current a t Maximum power, Imp (A) - 1.33A.
• Module Efficiency (%) - 10.33%.

Mechanical Parameters
• Module dimension: 774mm x 243mm x 24mm.
• Matrix: 9 x 4.
• Solar cell Type: Multi crystalline cells.
• Front Cover: 3.2mm Thick Low iron tempered glass.
• Frame Material: Silver Anodized Aluminium Alloy.
• Junction Box: 2 Rail.

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
